Salinity / Conductivity

Salinity / Conductivity#

Salinity is a cornerstone hydrological variable that determines seawater density along side temperature and pressure. It is a central dynamical variable that conditions the evolution of the Ocean circulation from micro to climatic scales as well as the Ocean biological and ecological evolution [Röthig et al. 2023].

Additional online ressource about the “art” of measuring conductivity may be found on the salinometry website.

contributions:

  • Aurélien Ponte, Louis Marié: 07/2024

Sensing physics#

Background#

The observation of salinity has a long history [Wallace 1974]:

  • 1819: A. Marcet formulates the principle of constant relative proportions that states that the chemical composition of seawater is nearly constant globally

  • 1902 The work of the [ International Council for the EXploration of the Sea - Knudsen] leads to:

    • the first definition of absolute salinity : “the total amount of solid material in grams contained in one kilogram of seawater when all the carbonate has been converted to oxide, all the bromine and iodine replaced by chlorine and all the organic material oxidized” - but this is very difficult to measure !

    • the empirical relation: \(S=0.03 + 1.805 Cl\), variables expressed in ppt = part per thousands = g/kg = ‰

    • Cl can be measured by titration (chemically) - precision down to 0.02 ‰ (on salinity). But titration prohibits automated sampling.

../_images/conductivity_picture_seawater_composition.png

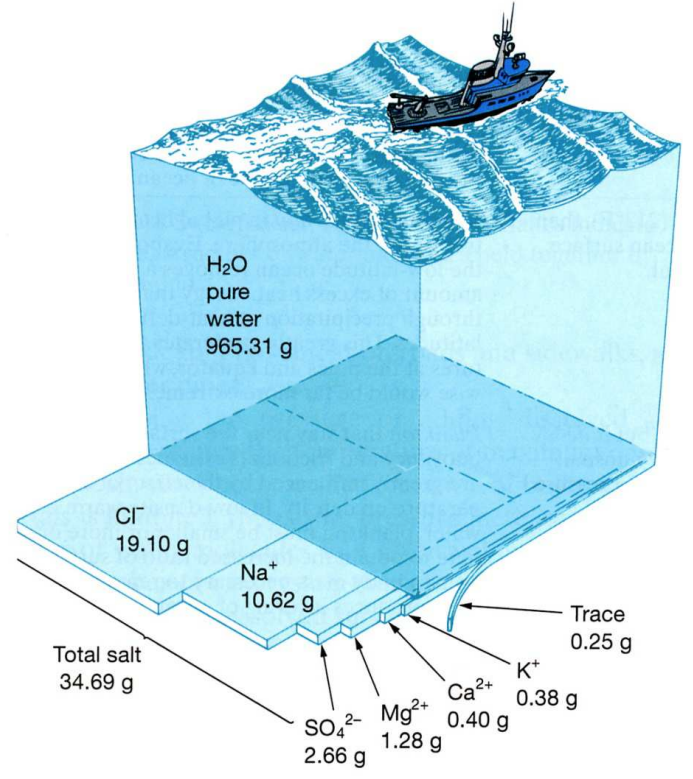

Seawater chemical composition - source: [Thurman and Trujillo 2004]#

../_images/conductivity_picture_titration.png

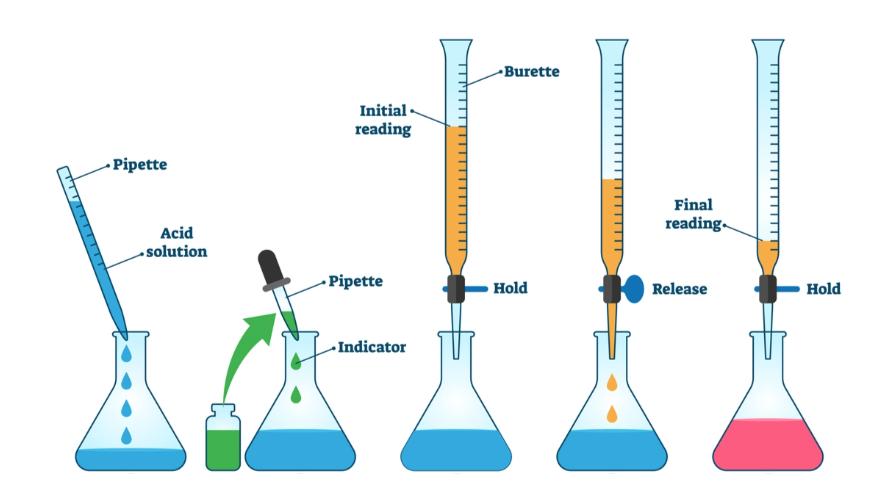

Titration illustration - source: Chemsitry Made Simple#

  • Early 1970s: technological developments enable accurate measurements of conductivity (from ships at depth)

  • 1978, the Practical Salinity Scale based on conductivity is developed:

    \[\begin{align*} S_p = 0.0080 &- 0.1692 K_{15}^{1/2} + 25.3851 K_{15} + 14.0941 K_{15}^{3/2} \\ &- 7.0261 K_{15}^2 + 2.7081 K_{15}^{5/2} \end{align*}\]

    with \( K_{15} = C(S_p, 15, 0) / C(KCl, 15, 0) \), \(2\le S \le 42\), and \(KCl\) representing the standard potassium chloride solution.

    • practical salinity is unit-less but usually referred to as psu

    • conductivity unit: S/m (siemens per meter) = (ohm/m)-1

    • salinity (via Cl) - conductivity relationship is accurate to ±0.002‰ in salinity above 27.1‰ and ±0.005‰ for fresher waters [Wooster et al. 1969]

The focus shifted then on the measurement of conductivity.

../_images/conductivity_picture_millero.jpg

A change of paradigm: “Since the definition of PSS-78, conductivity is the single standard property used to estimate thermodynamic properties (such as density) of seawater samples taken from arbitrary locations. Chlorinity is regarded as an independent property of lower significance, this way resolving the conflict in Fig. 2” [Millero et al. 2008]#

https://upload.wikimedia.org/wikipedia/commons/9/98/Water_salinity_diagram.png

Typical salinity values - source: wikipedia#

Relevant range of variations in the ocean:

  • 0 < practical salinity < 42

  • 0 < conductivity < 70 mS/cm or 0 < conductivity < 7 S/m

Around \(Sp=35\), \(T=10\), \(p=0\)dbar, conductivity (in mS/cm) may be approximated by : \(C = 38.1 + 0.98 S + 0.95 T\)

conductivity is a stronger function of temperature - temperature must therefore also be measured (salinity being the final target):

  • with sufficient accuracy and temporal resolution and lag

  • within the same water mass (design constraint)

GSW is a useful python library to relate salinity, conductivity, temperature, density, etc:

import gsw
import xarray as xr
import numpy as np

# generate dummy dataset to illustrate conductivity dependence on temperature&salinity
w = xr.Dataset(
    coords={
        "t": ("t", np.arange(0,30,.1), {"units": "deg C", "long_name": "In-situ temperature (ITS-90)"}),
        "Sp": ("Sp", np.arange(0,42,.1), {"units": "unitless", "long_name": "Practical Salinity (PSS-78)"}),
    },
)
w["C"] = gsw.C_from_SP(w["Sp"], w["t"], 0.)
w["C"].attrs.update(
    units="mS/cm",
    long_name="conductivity",
)

w["C"].plot.contourf(x="Sp", levels=10, figsize=(3,3));
../_images/9735d1a5d3382de219974a8f6eb1b5e740a7e9a714e2e08db46159a50c5a2a65.png

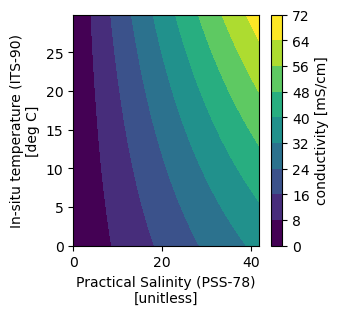

Conductivity as a function of temperature and salinity (near ocean surface)#

Non-contact - inductive sensing#

../_images/conductivity_induction.jpg

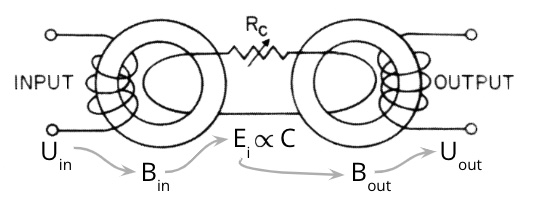

Inductive principle - source unknown#

A first method employed to measure seawater conductivity relies on induction.

An oscillating electrical voltage \(U_{in}\) is forced in a first coil and drives an electrical current in seawater that is proportional to its conductivity. This currents drives voltage fluctuations in a receiving coil which can be measured to infer seawater conductivity.

to do: basic physical modeling see [Striggow and Dankert 1985, Sheng et al. 2015, Ashokan et al. 2023]

Advantages

  • No electrode contamination: sensors are unaffected by contaminants (i.e. “dirt”) and able to measure within 20cm of the air-sea interface (no pump to turn off)

  • Rugged sensor construction withstands rough handling and can be used in freezing conditions

  • Naturally flushed, pump-free design uses relatively little power offering longer autonomous deployments on a variety of platforms

  • Acoustically noise-free design (no pump) that will not affect passive acoustic monitoring

Drawbacks:

  • Sensors need to be calibrated in fully-integrated state in order to avoid proximity effects and obtain stated accuracy. This is because electrical current flows outside of the cell

  • Sensitivity to presence of material and/or buble within the cell

../_images/conductivity_rbr.jpg

RBR conductivity sensor. The initial accuracy of the sensor is about 0.003 mS/cm. Source: RBR. See [Dever et al. 2022] for performance report.#

../_images/conductivity_d2inc.jpg

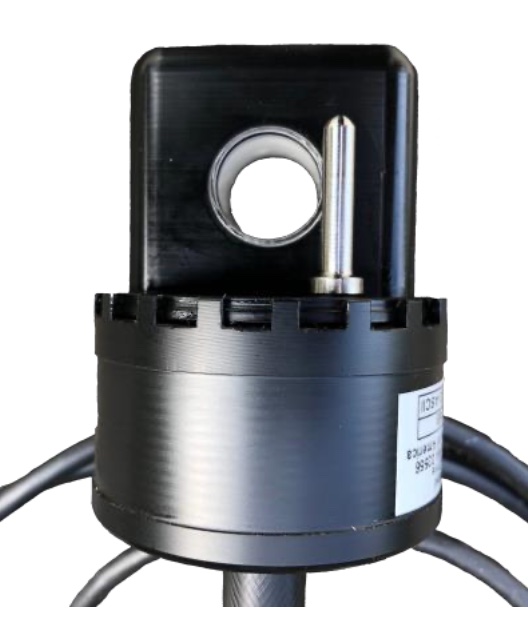

D2inc conductivity/temperature sensor - source: D2inc#

Contact / electrode sensing#

Electrode-based conductivity sensors rely on measuring seawater resistivity in a small volume of water contained in an insulating material, often borosilicate glass (weak deformation under pressure). The seawater’s conductivity is deduced from the measured resistivity between the electrodes placed within the cell. Such sensors are labelled “electrolytic conductivity sensors”. Designs of electrode type conductivity sensors distinguish themselves by the number of electrodes employed and by their geometry (e.g. planar vs cylindrical) [Thirstrup et al. 2021].

2 electrodes#

The simplest design involves the use of two electrodes:

../_images/conductivity_2electrodes_0.jpg

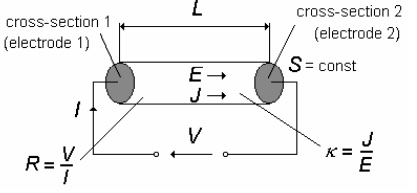

Illustration of electrolytic conductivity sensor - source: [Moron 2006]#

The conductivity (\(\kappa\) in the figure above) is related to measured current tension \(V\) and intensity \(I\) by the so-called cell constant \(K\) which depends on the cell geometry:

\[\begin{align*} \kappa = \frac{V}{I} \times K \end{align*}\]

The cell constant may be predicted theoretically but requires often being callibration experimentally.

The interaction between the electrode and seawater (the electrolyte) is a complex process which gives rise to polarization effects [Moron 2006, Thirstrup et al. 2021]. These effects are frequency dependent and can be modelled (double layer capacitance, Warburg/diffusion impedance, Faraday resistance) but may prohibit measurements in configurations where cells are small and/or conductive liquids such as seawater (see Moron 2006 quantitative example).

../_images/conductivity_2electrodes_1.jpg

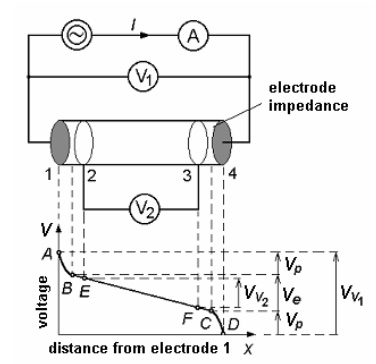

“Illustration of two- and four-electrode method of measurement and distribution of the potential along the conductivity sensor …” - source: [Moron 2006]#

3 electrodes#

In practice, 3 electrodes (2 being shorted) are used in order to minimize polarization effects [Thirstrup et al. 2021]. The seabird conductivity (Beckman) cell is based on a three electrode design. The conductivity cell constitutes a variable resistance in a Wien Bridge Oscillator. Outside electrodes are connected to ground. An A/C current is applied to the inner electrode to mitigate electrode polarization. A pump controls the flow of water and ensures temperature/conductivity measurement temporal synchronicity. Improper temperature alignment of temperature and conductivity measurements leads to spiking at sharp water transitions. Typical accuracies of such system is of order \(0.01\) psu. Seabird ctd temperature/conductivity responses is estimated to be at about 0.06s

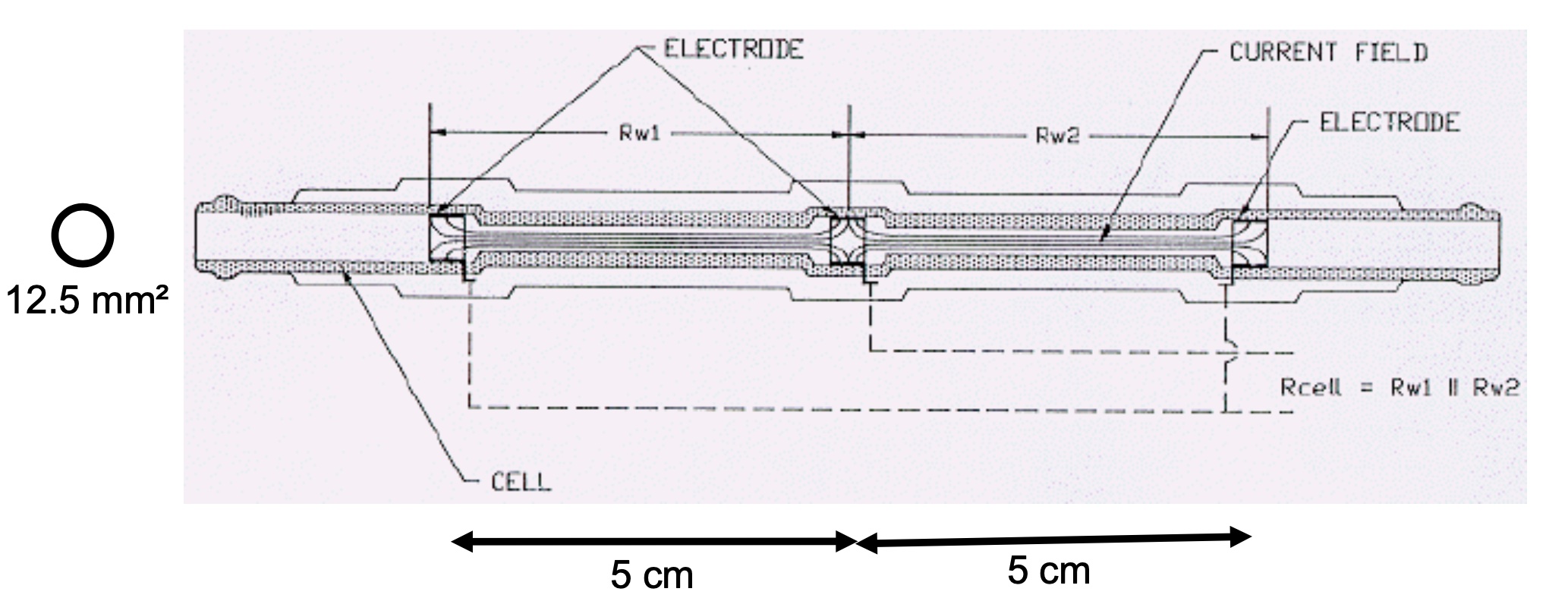

../_images/conductivity_seabird0.jpg

Seabird conductivity cell - source: seabird#

../_images/conductivity_seabird1.jpg

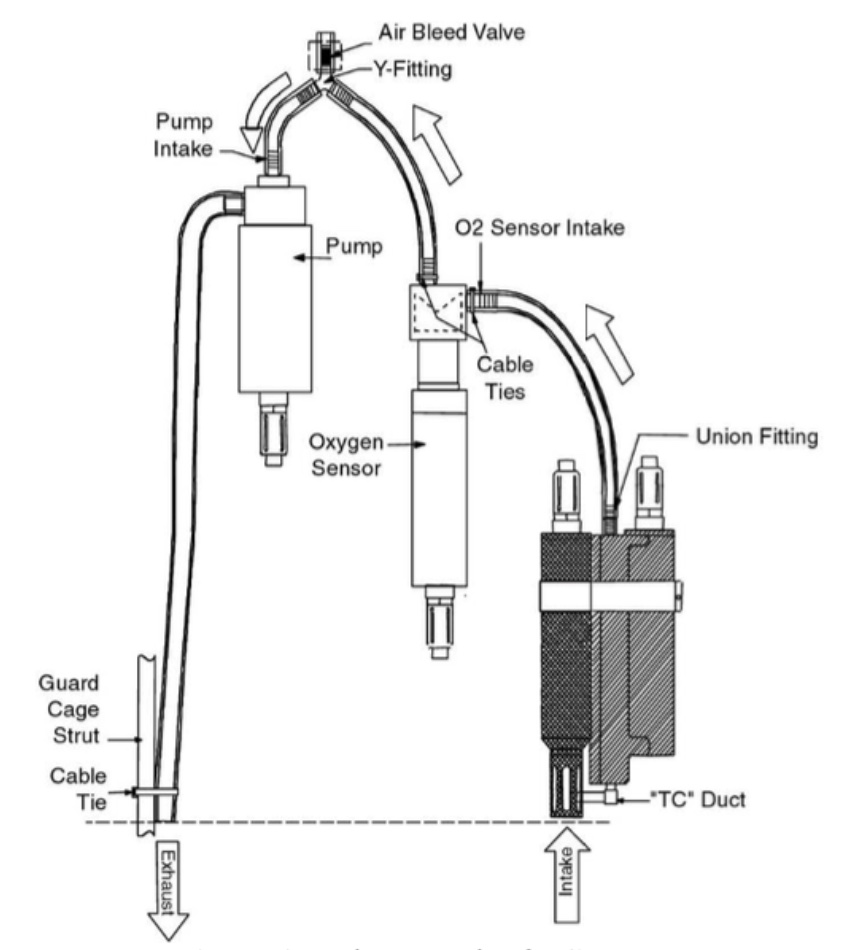

Exhaust path of TC duct water - source: seabird - application note 38#

4 electrodes#

Four electrodes sensors is the standard for high precision conductivity measurements. On the illustration above, electrodes 2 and 3 are measuring electrodes and should not disturb the original distribution of the potential.

Polarization effects have to be modelled, calibrated and corrected for [Moron 2006, Ashokan et al. 2023].

Guildline salinometers are laboratory instruments that are based on 4 electrode design and reach high accuracies (0.002 psu).

electrode designs pros/cons#

Advantages:

  • Well known and established sensors

  • Fully-enclosed electromagnetic field is unaffected by nearby objects (such as antennas, sensor guards, or other instruments)

  • Temperature and conductivity are measured on the same small water parcel (if sensor inside cell or well-thought pumping system / flow design)

Drawbacks:

  • Fouling (major): electrode surfaces can become fouled by surface contaminants, so pump must be stopped metres before reaching surface: requires: calibration pre/post deployment

  • Thermal mass: nearby strong thermal gradients water is warmed up by the sensor body

  • If pumping: complex assembly which requires care to clean (prior to storage for instance) and is not suitable for use in freezing conditions requires power to operate which impacts the endurance of the instruments and/or the size of the required power supply causes vibrations and noise which may affect sensitive acoustic or microstructure measurements

Other#

Acoustic sensing#

…

Optical sensing#

…

MEMS#

…

References#

You can access publications and book references via the library’s search tool.

Background#

  • Emery, W.J., Thomson, R.E., 2001. Data analysis methods in physical oceanography, 2nd ed. Elsevier, Amsterdam.

  • IOC, SCOR and IAPSO, 2010. The international thermodynamic equation of seawater – 2010: Calculation and use of thermodynamic properties (No. 56), Intergovernmental Oceanographic Commission, Manuals and Guides. UNESCO.

  • Millero, F.J., Feistel, R., Wright, D.G., McDougall, T.J., 2008. The composition of Standard Seawater and the definition of the Reference-Composition Salinity Scale. Deep Sea Research Part I: Oceanographic Research Papers 55, 50–72. doi: 10.1016/j.dsr.2007.10.001

  • Röthig, T., Trevathan-Tackett, S.M., Voolstra, C.R., Ross, C., Chaffron, S., Durack, P.J., Warmuth, L.M., Sweet, M., 2023. Human-induced salinity changes impact marine organisms and ecosystems. Global Change Biology 29, 4731–4749. doi: 10.1111/gcb.16859

  • Stewart R. H., 2008. Introduction to physical oceanography. Robert H. Stewart. Available electronically from https://hdl.handle.net/1969.1/160216

  • Thurman, H.V., Trujillo, A.P., 2004. Introductory oceanography, 10th ed. ed. Pearson Prentice Hall, Upper Saddle River, N.J.

  • Wooster, W.S., Lee, A.J., Dietrich, G., 1969. Redefinition of salinity. Limnology & Oceanography 14, 437–438. doi: 10.4319/lo.1969.14.3.0437

  • Wallace, W.J., 1974. The development of the chlorinity/salinity concept in oceanography, Elsevier oceanography series, v. 7. Elsevier Scientific Pub. Co, Amsterdam, New York.

Inductive method#

Electrodes method#

  • Ashokan, R.R., Suresh, G.N., Ramesh, R., 2023. Studies of the Four-Electrode Cell and Dynamic Flow-Through Profiling Experiment on Seawater Conductivity. IEEE Sensors J. 23, 26430–26437. doi: 10.1109/JSEN.2023.3313190

  • D. Elliott, J., A. Papaderakis, A., W. Dryfe, R.A., Carbone, P., 2022. The electrochemical double layer at the graphene/aqueous electrolyte interface: what we can learn from simulations, experiments, and theory. Journal of Materials Chemistry C 10, 15225–15262. doi: 10.1039/D2TC01631A

  • Fulton, S.G., Stegen, J.C., Kaufman, M.H., Dowd, J., Thompson, A., 2023. Laboratory evaluation of open source and commercial electrical conductivity sensor precision and accuracy: How do they compare? PLoS One 18, e0285092. doi: 10.1371/journal.pone.0285092

  • Méndez-Barroso, L.A., Rivas-Márquez, J.A., Sosa-Tinoco, I., Robles-Morúa, A., 2020. Design and implementation of a low-cost multiparameter probe to evaluate the temporal variations of water quality conditions on an estuarine lagoon system. Environ Monit Assess 192, 710. doi: 10.1007/s10661-020-08677-5

  • Moron, Z., 2006. Considerations on the accuracy of measurements of electrical conductivity of liquids. Presented at the XVIII IMEKO World Congress, Rio de Janeiro, Brazil.

  • Sylvan, K., 1987. RF electrolytic conductivity transducers. The University of Edinburgh.

  • Thirstrup, C., Deleebeeck, L., 2021. Review on Electrolytic Conductivity Sensors. IEEE Trans. Instrum. Meas. 70, 1–22. doi: 10.1109/TIM.2021.3083562

  • seabird applications notes (see 38 on pumps): https://www.seabird.com/application-notes

  • https://atlas-scientific.com/conductivity/

Other#

  • Gu, L., He, X., Zhang, M., Lu, H., 2022. Advances in the Technologies for Marine Salinity Measurement. JMSE 10, 2024. doi: 10.3390/jmse10122024

Available sensors#

---------------------------------------------------------------------------
KeyError                                  Traceback (most recent call last)
/var/folders/xx/8pgh2syn2h93751wzfymdwt40000gq/T/ipykernel_23475/3018906905.py in ?()
      1 # Read the CSV file using pandas with appropriate parameters
      2 df = pd.read_csv("sensors.csv",
      3                  sep=';',
----> 4                  na_values=['', 'NaN', 'nan']).set_index("Technology")
      5
      6 # Clean column names
      7 df = df.rename(columns=lambda x: x.strip())

~/miniforge3/envs/diyocean/lib/python3.11/site-packages/pandas/core/frame.py in ?(self, keys, drop, append, inplace, verify_integrity)
   6125                     if not found:
   6126                         missing.append(col)
   6127
   6128         if missing:
-> 6129             raise KeyError(f"None of {missing} are in the columns")
   6130
   6131         if inplace:
   6132             frame = self

KeyError: "None of ['Technology'] are in the columns"
📋 Interactive Table Features:
• Drag & Drop: Click and drag column headers to reorder columns
• Links: URLs are converted to clickable link (🔗) icons
Technology ⇄type ⇄technology ⇄absolute accuracy ⇄Range ⇄relative accuracy ⇄Response time ⇄max sampling frequency ⇄stability ⇄niveau de validation ⇄lien document de validation ⇄intégration mécanique ⇄intégration électronique interface de communication ⇄coût ⇄lien doc technique ⇄lien fournisseur ⇄
Hobo Onset temperature————————————170 (2023)—Prosensor
PME Minidot Oxygen————————————1700 (2023)—Terra4
nan———————————————
Conductivité CTD Seabird SBE19+, hydrocatInstrumentConductivité électrique—————————————
Conductivité CTD NKE WisensInstrument——————————————
Conductivité CTD ValeportInstrument——————————————
Conductivité CTD RBRInstrument——————————————
Conductivité CTD Castaway SontekInstrument——————————————
Conductivité CTD YSIInstrument——————————————
Conductivité Atlas scientifiquesensorConductivité électrique 2 électrodes——————ne remplit pas les critères de spécification——————
Conductivité Decagon (inconnu)sensorOS, tétrapolaire—————————————
Conductivité Seeed Studio (inconnu)sensorOS—————————————
Conductivité DFRobot DFR0300sensorOS—0-15 mS/cm±5% F.S.——————————
Conductivité CTD AML 3XCInstrument——0–90 mS/cm0.006 mS/cm0.001 sec20 Hz————————
Conductivité/Température C4A AqualabosensorConductivité électrique 4 éléctrodes—0-200mS/cm±1% F.S.<5 sec—————————
Conductivité/Température Aanderaa 5819sensorconductivité inductive—0-75 mS/cm+/- 0.018 mS/cm3sec1Hz———Pas de vis M16RS232———
Conductivité WTW Tetracon 325CellConductivité électrique 4 électrodes—1 µS/cm ... 2 S/cm———————————
